COLD FORGING AND MACHINING FOR THE AUTOMOTIVE SECTOR AND COMMERCIAL VEHICLES
Download catalogue
PRODUCTS
The quality and
innovation you
were looking for
to achieve your goals

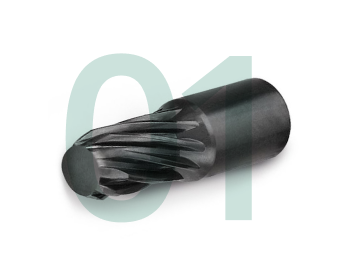

SPECIAL PARTS
LIMITS/DIMENSIONS
General limits for technical parts
- Minimum thickness: 2 mm.
- Ø: 10 mm – 50 mm.
- Ø head: Max. 76 mm.
- Length: 360 mm.
- Minimum weight: 65 gr.
- Average weight: 300 gr.
- Maximum weight: 3.300 gr.
SHAFTS
LIMITS/DIMENSIONS
General limits for technical parts
- Minimum thickness: 2 mm.
- Ø: 10 mm – 50 mm.
- Ø head: Max. 76 mm.
- Length: 360 mm.
- Minimum weight: 65 gr.
- Average weight: 300 gr.
- Maximum weight: 3.300 gr.
SCREWS
LIMITS/DIMENSIONS
General limits for technical parts
- From metric 12 to 33 mm.
- Lengths from 30 to 180 mm.
- Grades from 4.6 to 12.9.
- From metric 12 to 33 mm.
- Lengths from 30 to 180 mm.
- Grades from 4.6 to 12.9.

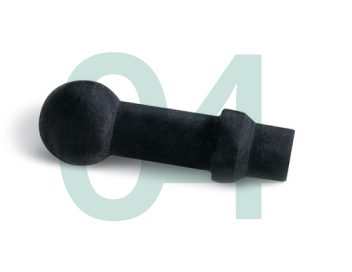

BALL POINTS
LIMITS/DIMENSIONS
General limits for technical parts
- Minimum thickness: 2 mm.
- Ø: 10 mm – 50 mm.
- Ø head: Max. 76 mm.
- Length: 360 mm.
- Minimum weight: 65 gr.
- Average weight: 300 gr.
- Maximum weight: 3.300 gr.

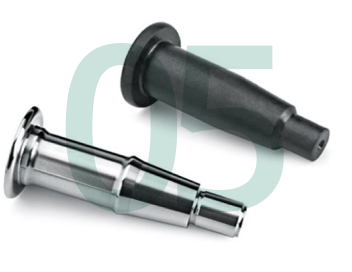

MACHINED PARTS
LIMITS/DIMENSIONS
General limits for technical parts
- Minimum thickness: 2 mm.
- Ø: 10 mm – 50 mm.
- Ø head: Max. 76 mm.
- Length: 360 mm.
- Minimum weight: 65 gr.
- Average weight: 300 gr.
- Maximum weight: 3.300 gr.
SLEEVES
LIMITS/DIMENSIONS
General limits for technical parts
- Minimum thickness: 2 mm.
- Ø: 10 mm – 50 mm.
- Ø head: Max. 76 mm.
- Length: 360 mm.
- Minimum weight: 65 gr.
- Average weight: 300 gr.
- Maximum weight: 3.300 gr.
Would you like to know everything we can do for you? Download the catalogue. Surely you will find information of interest to you.
JESÚS OÑATE
Experience and knowledge at the service of the automotive sector
Proprietary
tool designs
Renowned quality
R&D strategic
eplanning
Cost savings due to less steel/weight use
CNC Machining
Semi-finished parts ready for assembly
Cold forging
Reduction of machining time and part weight
PRODUCTION MEANS
Machinery and knowledge are the key to our competitiveness
Machinery and knowledge are the key to our competitiveness
JESUS OÑATE y HNOS. has the latest technology in multi-station horizontal cold forging presses (up to 6 stations, and a maximum power of 600 tonnes). Thanks to these means, we can produce a wide range of parts in terms of size (from 50 gr to 1.5 kg) and technical complexity.
CNC machining
The machining and assembly division has modern robotised numerical control centres (CNC) and transfer machines for component machining and assembly.
QUALITY
Our commitment to quality goes beyond words.
The quality of our products begins with the technical design of the production process, with excellence as the primary objective. It continues with the application of automatic prevention and verification systems for each unit produced. Everything is carried out within a quality management system recognised by our clients (IATF 16949, ISO 14001, EFQM).
REFERENCES
They have already taken the step, now it's your turn
There are many companies that trust in our work. We work hand in hand with all of them to optimise production costs while keeping quality requirements intact.
